Double chainring
Front Derailleur Mount: None
Front Derailleur: Shimano Tiagra
10 Speed
Commuter: Yes
Touring: Yes
Road: Yes
Double chainring
Front Derailleur Mount: None
Front Derailleur: Shimano Tiagra
10 Speed
Commuter: Yes
Touring: Yes
Road: Yes
Shimano Tiagra

Shimano Derailleur Tiagra Front Mech 4700 28.6/31.8mm

€36.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

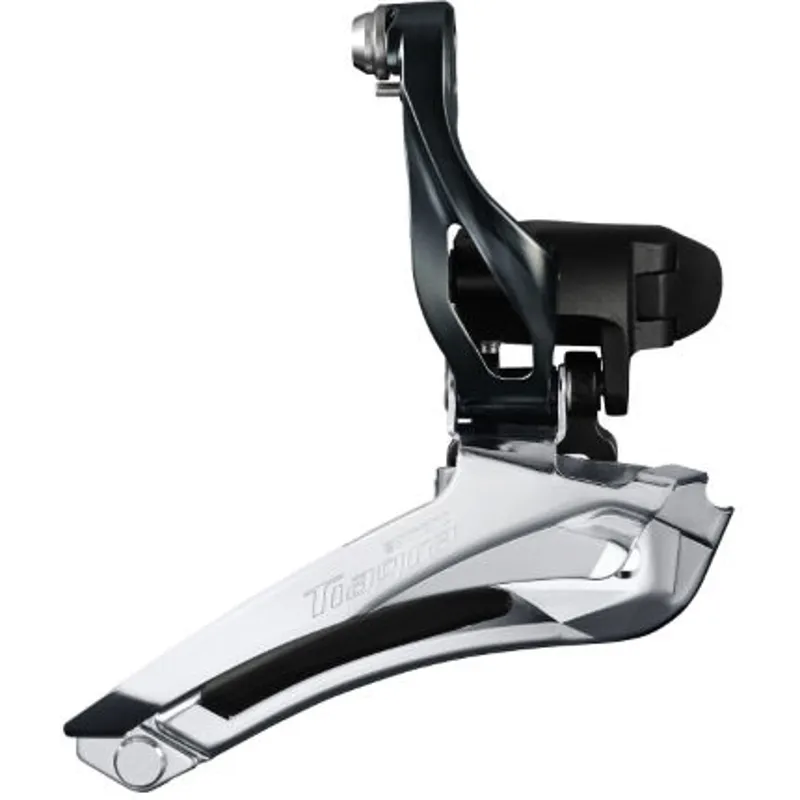

Shimano Derailleur Tiagra Front Mech 4700 28.6/31.8mm

Season:All seasons

Brand:Shimano Tiagra

Code:24/SDFM4700

The Shimano Tiagra FD4700 10 Speed Front Derailleur offers smooth and dependable shifting while you train, commute, or take on endurance rides on your road bike.
The Shimano Tiagra FD4700 front derailleur is a superb option for the front mechanism since it has an extra-wide pivot link, which increases strength while decreasing flex to assist shifting on a road bike.

Features:

Speed: 2 x 10
Compatible with any road Shimano Shifters for 2x10 speeds
16 tooth maximum capacity; maximum tooth 53-tooth outer chainring
43.5mm chainline
Angle of the chainstay: 61–66 degrees
Cable Pull Type: Only the bottom pull
variants available in clamp on and braze on
Chain cage made of plated steel
Wider pivot links improve shifting response by minimizing flex and increasing stiffness.
Links and band made of aluminum to save weight and boost rigidity
Technical Information
Top characteristics:
Speed: 2 x 10
Compatible with any road Shimano Shifters for 2x10 speeds
16 tooth maximum capacity; maximum tooth 53-tooth outer chainring
43.5mm chainline
Angle of the chainstay: 61–66 degrees
Cable Pull Type: Only the bottom pull
variants available in clamp on and braze on
Chain cage made of plated steel
Wider pivot links improve shifting response by minimizing flex and increasing stiffness.
Links and band made of aluminum to save weight and boost rigidity
